The CAPRI HBB is the black box version of the renowned Hertz CAPRI marine source, delivering the same high-resolution audio performance and advanced features without an integrated display. Designed for seamless control via remote units, Bluetooth® app, or NMEA 2000®, it ensures full management of four independent zones with dedicated subwoofer outputs. Engineered to withstand harsh marine environments, the CAPRI HBB offers superior connectivity, including Bluetooth® 5.1, USB, digital inputs/outputs, and DAB+ readiness, for an audiophile-grade marine experience.
| PEAK POWER @ 4 Ω | CLASS-D: 4 x 70 W |
| FRONT PANEL IP RATING | IP66 |
| MULTI-ZONE | 4 |
| LINE OUT (RCA) | 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz |
| SUBWOOFER OUT (RCA) | 4x (LPF: ALL, 60, 80, 100 Hz) |
| AUX INPUT (RCA) | 2x L+R |
| S/PDIF DIGITAL IN | Toslink (24 bit/96 kHz) |
| A2B® DIGITAL BUS | UTP cable (24 bit/96 kHz) |
| S/PDIF DIGITAL OUT | Coaxial (24 bit/96 kHz) |
| EQUALIZER | CUSTOM 8 BANDS for each zone |
| EQ. PRESET | 8 |
| CAMERA IN | Yes |
| BATTERY VOLTAGE GAUGE | Yes |
| TUNER | AM/FM (RDS) (EU/US) Weather band |
| USB | Yes (2A) |
| IPOD/IPHONE | Yes |
| DAB+ | Ready |
| SIRIUSXM READY | Yes |
| BLUETOOTH | 5.1 Audio streaming with ID3 Tag Display LDAC – AAC – APTX HD |
| REMOTE CONTROL | HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones) |
| Unit Size mm (in.) | W 146 (5.748) x H 105 (4.134) x D 121 (4.763) |
| Mounting Hole size mm (in.) | W 122 (4.8) x H 52 (2.05) |
| Mounting Depth mm (in.) | 99 (3.89 |
| Mounting Method | Panel mount (4 screws) |

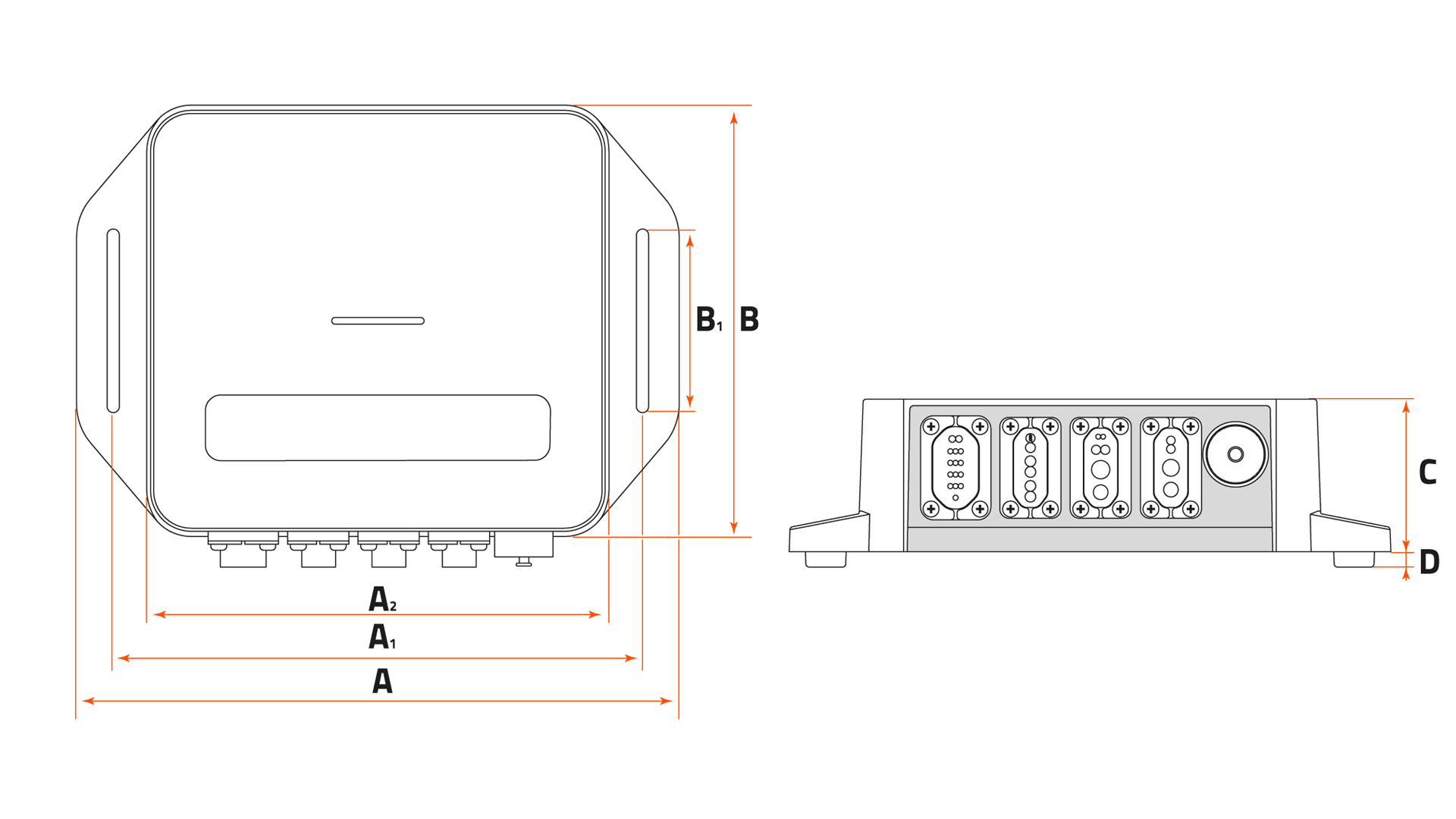

| A | 197 - 7.76 (mm - in.) |
| A1 | 173 - 6.81 (mm - in.) |
| A2 | 197 - 7.76 (mm - in.) |
| B | 150.65 - 5.93 (mm - in.) |
| B1 | 56 - 2.2 (mm - in.) |
| C | 50 - 1.97 (mm - in.) |
| D | 5 - 0.2 (mm - in.) |
HD1 provides the ability to replicate every function of the CAPRI HBB main unit, creating up to 3 independently controlled listening areas.
Enhance your marine audio experience with the HMC NMEA2K Volume Control, designed for seamless integration with your NMEA 2000® network.
WATER SPORT READY
Play your favorite song and pump up the volume while swimming in open water. Thanks to IPX7 certification you can install HMC U1 remote control freely anywhere on the boat, adding fun to every cruise.
This module add DAB+ DIGITAL RADIO capability. Provided with dedicated antenna.
Optional for connecting CAPRI HD1 to CAPRI HBB main unit
Optional for connecting CAPRI HD1 to CAPRI HBB main unit – 6 mt
CAPRI BB features IP67 protection grade, ASTM-D4329 standards for UV resistance, and ASTM-B117 for salt fog operability, giving you unstopped pleasure season after season.
