| Nominal diameter | 300 mm (12 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 1000 W |
| Power Handling - Continuous | 250 W |
| Sensitivity | 91 dB |
| Frequency Response | 28 ÷ 300 Hz |
| Voice Coil Ø | 38 mm (1.5 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 115 x 50 x 25 mm (4.5 x 2 x 1 in) |
| Cone Material | POLYPROPYLENE WITH MICA INJECTION |
| Xmax | 9 mm (0.35 in) |
| Xmech | 16 mm (0.63 in) |
| Driver Displacement Volume | 1.8 l (0.064 ft) |
| D | 258 mm (39.99 in) |
| Re | 3.3 Ohm |
| Fs | 32 Hz |
| Le | 2.2 mH |
| Vas | 70 l (2.472 ft) |
| Mms | 133 g (4.691 oz) |
| Cms | 0.18 mm/N |
| BL | 11.2 T•m |
| Qts | 0.62 |
| Qes | 0,71 |
| Qms | 5.14 |
| Spl | 91 dB |
| Mounting Depth | 120 mm |
| Grilles Included | No |
| Total Weight | 4 kg (8.818 lb) |
| Dimension A | 306 mm (12.05 in) |
| Dimension B | 279 mm (10.98 in) |
| Dimension C | 132 mm (5.2 in) |
| Dimension D | 120 mm (4.72 in) |
|

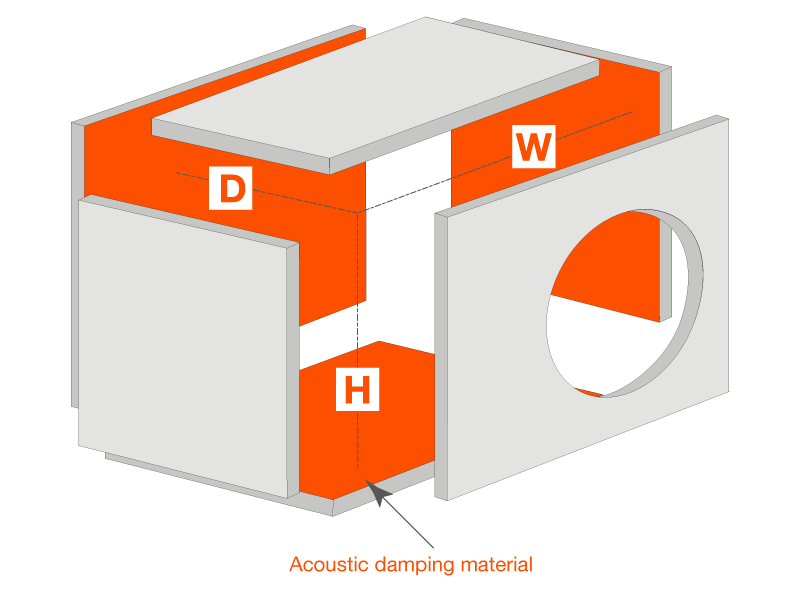

| VB l | 21 (1281 cu. ft.) |
| FB Hz | 56 |
| W mm | 320 (12.6 in) |
| H mm | 320 (12.6 in) |
| D mm | 205 (8.07 in) |
| VB l | 21 (1281 cu. ft.) |
| FB Hz | 56 |
| W mm | 320 (12.6 in) |
| H mm | 320 (12.6 in) |
| D mm | 205 (8.07 in) |
| VB l | 23.9 (1461 cu. ft.) |
| FB Hz | 40 |
| W mm | 340 (13.39 in) |
| H mm | 320 (12.6 in) |
| D mm | 220 (8.66 in) |
| VB l | 23.9 (1461 cu. ft.) |
| FB Hz | 40 |
| W mm | 340 (13.39 in) |
| H mm | 320 (12.6 in) |
| D mm | 220 (8.66 in) |
1. Polypropylene membrane stiffened with mineral powder.
2. High excursion butyl rubber surround.
3. Deep ribbing on the surface of the cone increase rigidity.
4. Very high efficiency, with superior power handling.
5. Designed to be used in small sealed or reflex (vented) enclosures.
6. Pure copper voice coil, wound on aluminum former, for very good thermal
and mechanical capacity.
7. Venting system provides better thermal dissipation and consistent
performance.
